Product Dimensions

Product Height

10.9 inches

Product Diameter

11 inches

Wire Cord Length

8 feet

Canopy Width

7.1 inches

General Product Highlights

Bullet Point 1

Modern Forms Fans pair with the smart home tech you know and love including Google Assistant Amazon Alexa Samsung Smart Things Nest and Ecobee.

Bullet Point 2

Free app download: Sync with our exclusive Modern Forms app to control fan speed use smart features like Adaptive Learning create groups and reduce energy costs. Optional battery operated RF remote is available (F-RC-WT).

Bullet Point 3

RF wall switch for local control included. Additional switches are available for 3 or 4 way setup (Part# F-WC-WT). Touch panel wall control with Modern Forms Fan App can be purchased separately (Part# F-TS-BK or -WT).

Bullet Point 5

Integrated LED light powered by WAC Lighting features smooth and continuous brightness control. An optional cover is included to conceal luminaire.

Outdoor Use Approved

Yes

Light Direction

Down

Beam Spread

Flood

Fan Specifications

Fan Blade Span

26 inches

Fan Blade Pitch

13 degrees

Fan Number of Blades

5

Fan Ceiling-to-Blade Height

7.5 inches

Fan Motor Size

125 mm X 20 mm

Fan Motor Reversible

Yes

Fan Motor Type

DC

Fan Included Control Type

Remote Control

Fan Included Control Description

6-Speed Reversible F-RCBT-WT

Fan Included Light Kit

Yes

Airflow Efficiency - Low Speed

269 cubic feet per minute

Airflow Efficiency - Medium Speed

2300 cubic feet per minute

Airflow Efficiency - High Speed

2715 cubic feet per minute

Electricity Use - Medium Speed

23.5

Light Bulb Specifications

Light Bulb LED-Incan Wattage Equivalence

0 watts

Light Bulb Average Life

50000 hours

Light Bulb Dimmable

Yes

Electrical Specifications

Connection Type

Hard Wired

Certifications and Compliance

UL Rating

Wet

Title 24 Compliant

Yes

Safety Rating

UL, cUL

ADA Compliant

Yes

Warranty Information

Warranty Description

5 years LED module, lifetime on the motor, and 1 year for all other parts.

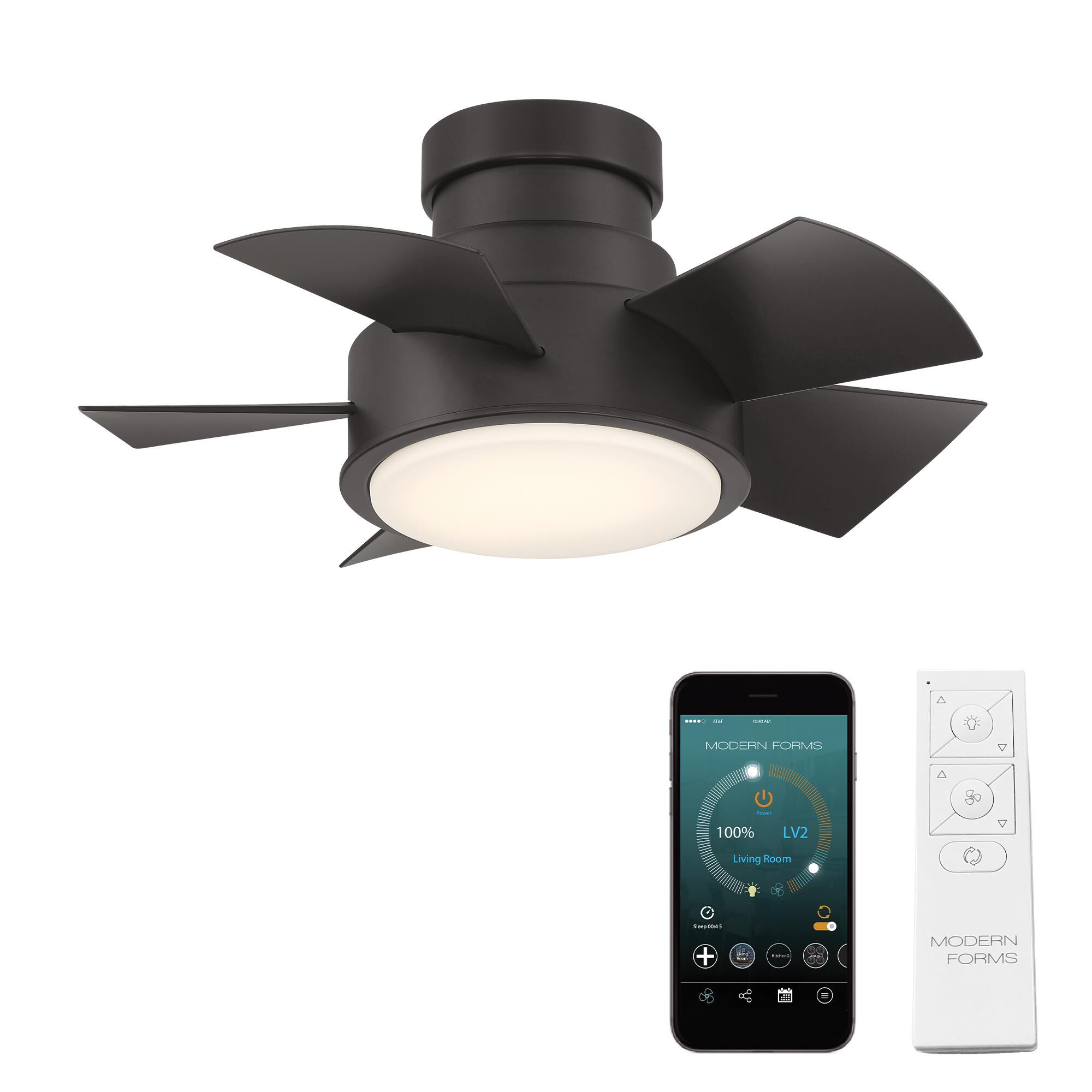

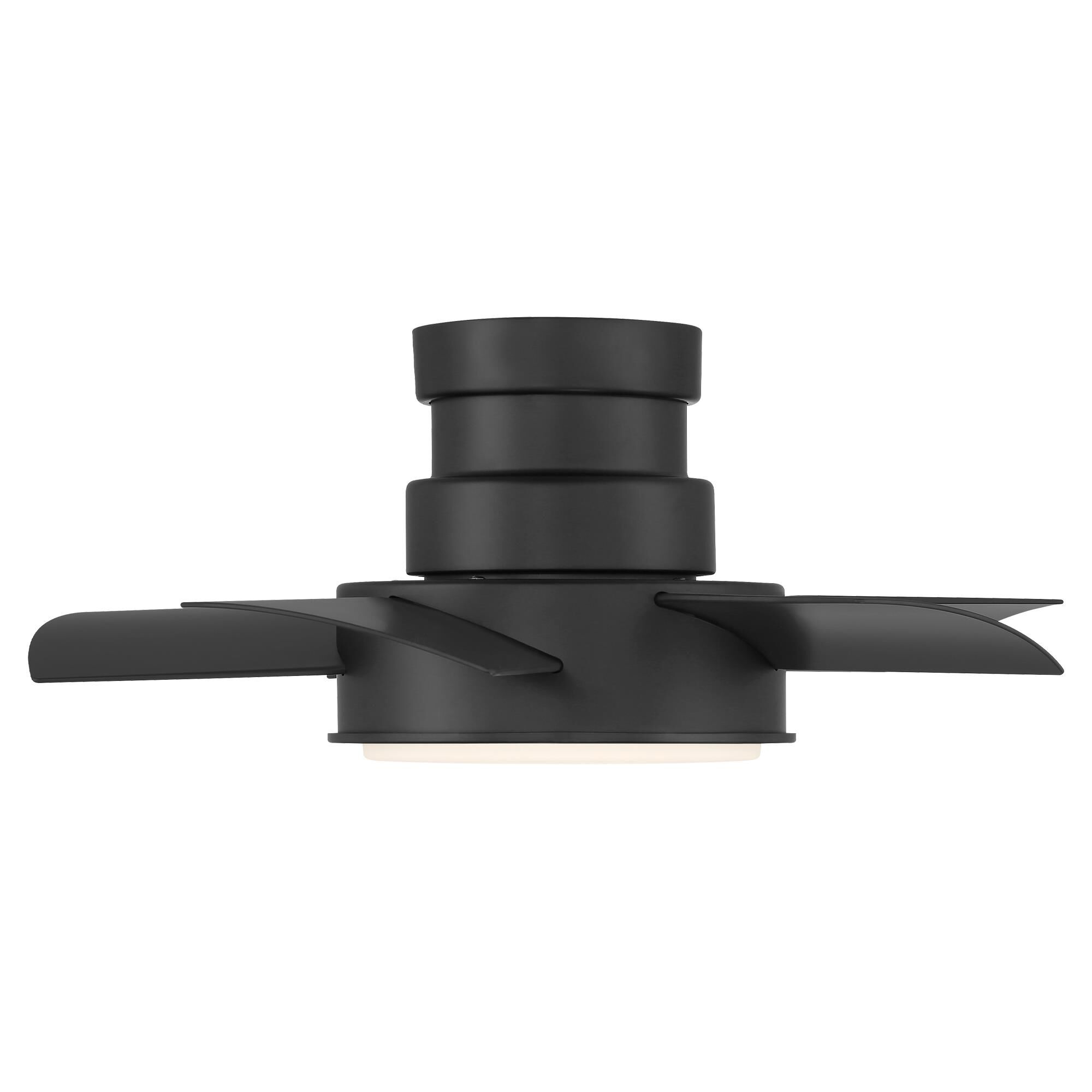

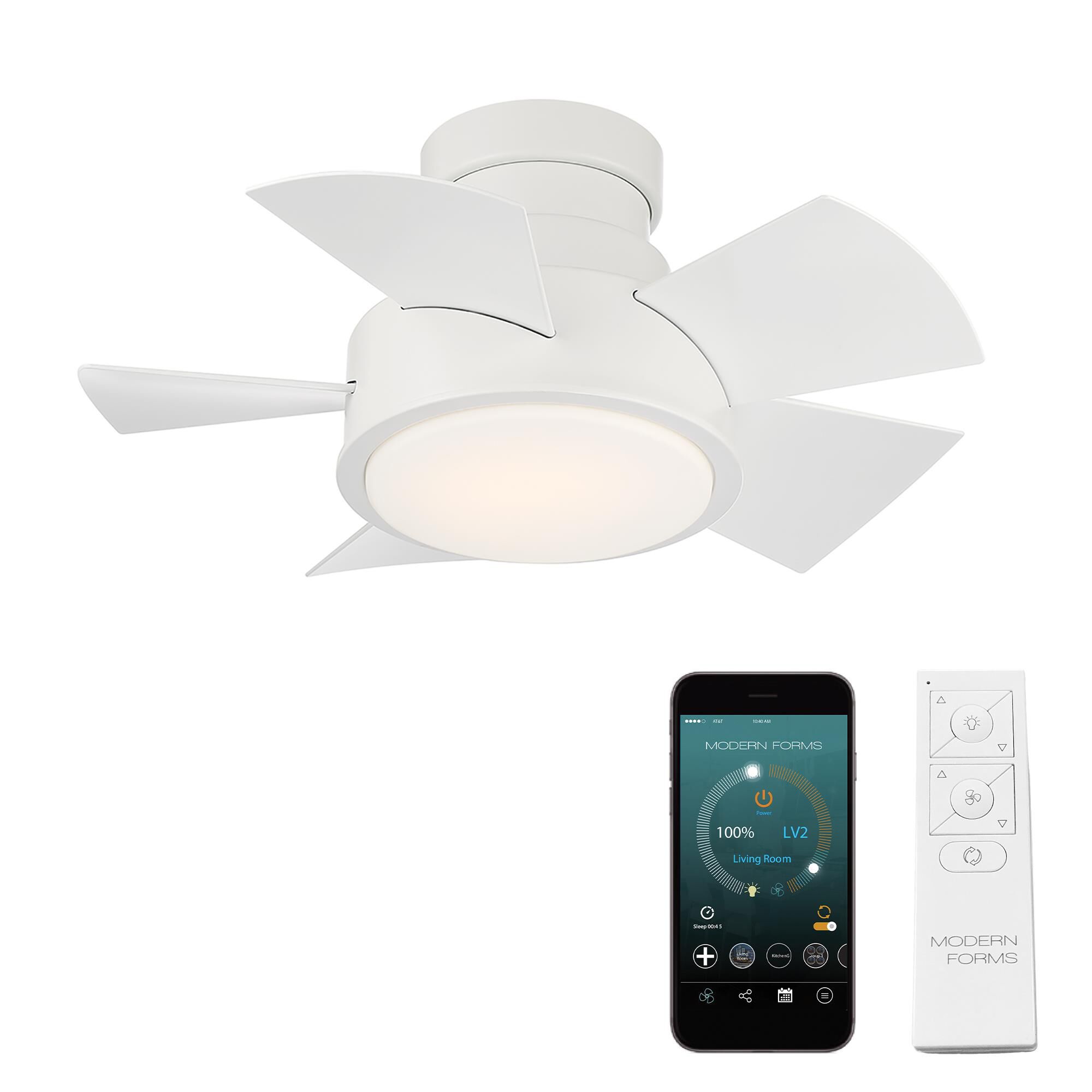

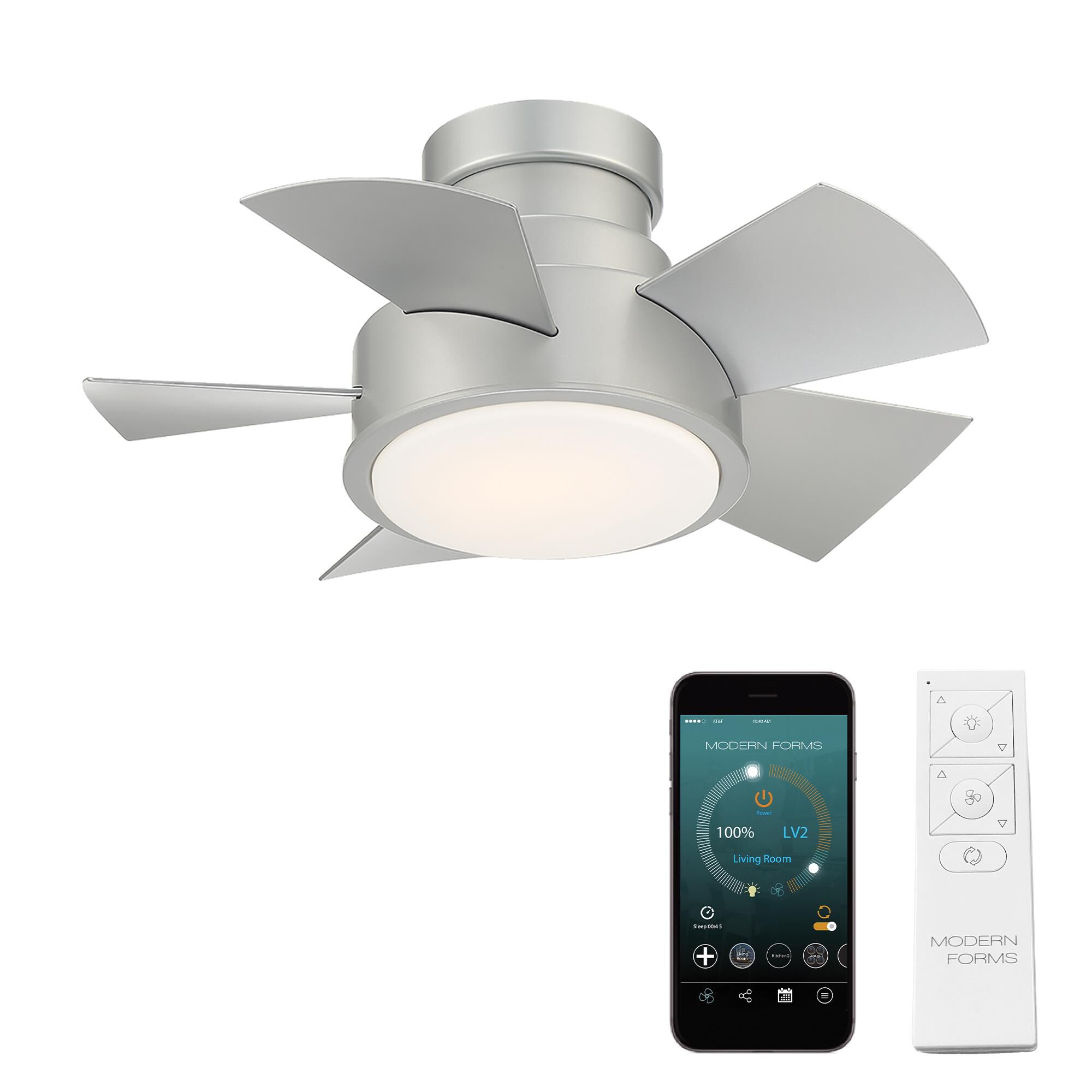

Overview

The Vox speaks in hushed tones—the powerful DC motor keeps the blades running smooth, ultra quiet and 70% more efficient than traditional AC styles. Perfect for smaller rooms, or mounted in multiples in larger spaces, Vox delivers the goods with a host of smart control features through our exclusive Modern Forms app.
